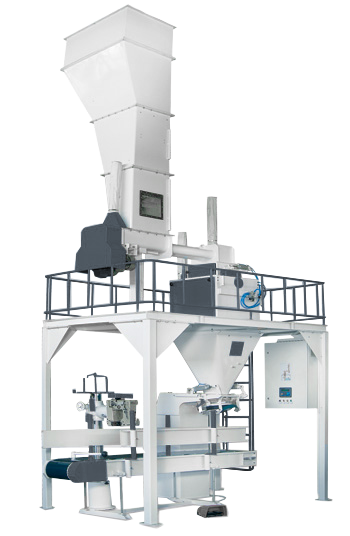

SINGLE WEIGHING SINGLE STATION FLOUR PACKING MACHINE (10-25 KG / 25-50 KG)
¦ Simplified calibration from the operator menu thanks to PLC-Based control system
¦ Automatic bag fill system with open mouth for 10-25 / 25-50 kg bags
¦ Fast and precision scaling with stainless steel Loadcells
¦ The ability to trace quantities of fill-in and filled bags through the operator's touch panel.
¦ Filling system that prevents weighing errors.
¦ There are no gaskets in the docking parts of the platter. This prevents bacteria from entering the platter.
¦ All screw motors have a (driver controllers).
¦ Belt conveyor can be easily adjusted to a height of 30 cm to 100 cm.
¦ The conveyor belt motors have a driver controller that are tuned to the required speed.
¦ Sewing machine was mounted on a mechanic stand of which height can be arranged to front and back.
¦ Thread consumption is minimized by optical sensors used.
¦ Labour safety is provided via emergency stop button on bag filling unit due to which the operator of the device to be able to move comfortably.
¦ Possibility of precise filling by working with different parameters in different products with recipe control.
¦ There are two digital capacitive sensors with an aluminum body in the flour bunker.
¦ The upper and lower tolerances can be programmed independently of each other
¦ Paint (epoxy) in accordance with food regulations.
¦ The design of the body wish can be made of quality Cr-Ni 304 stainless steel. (Optionally
