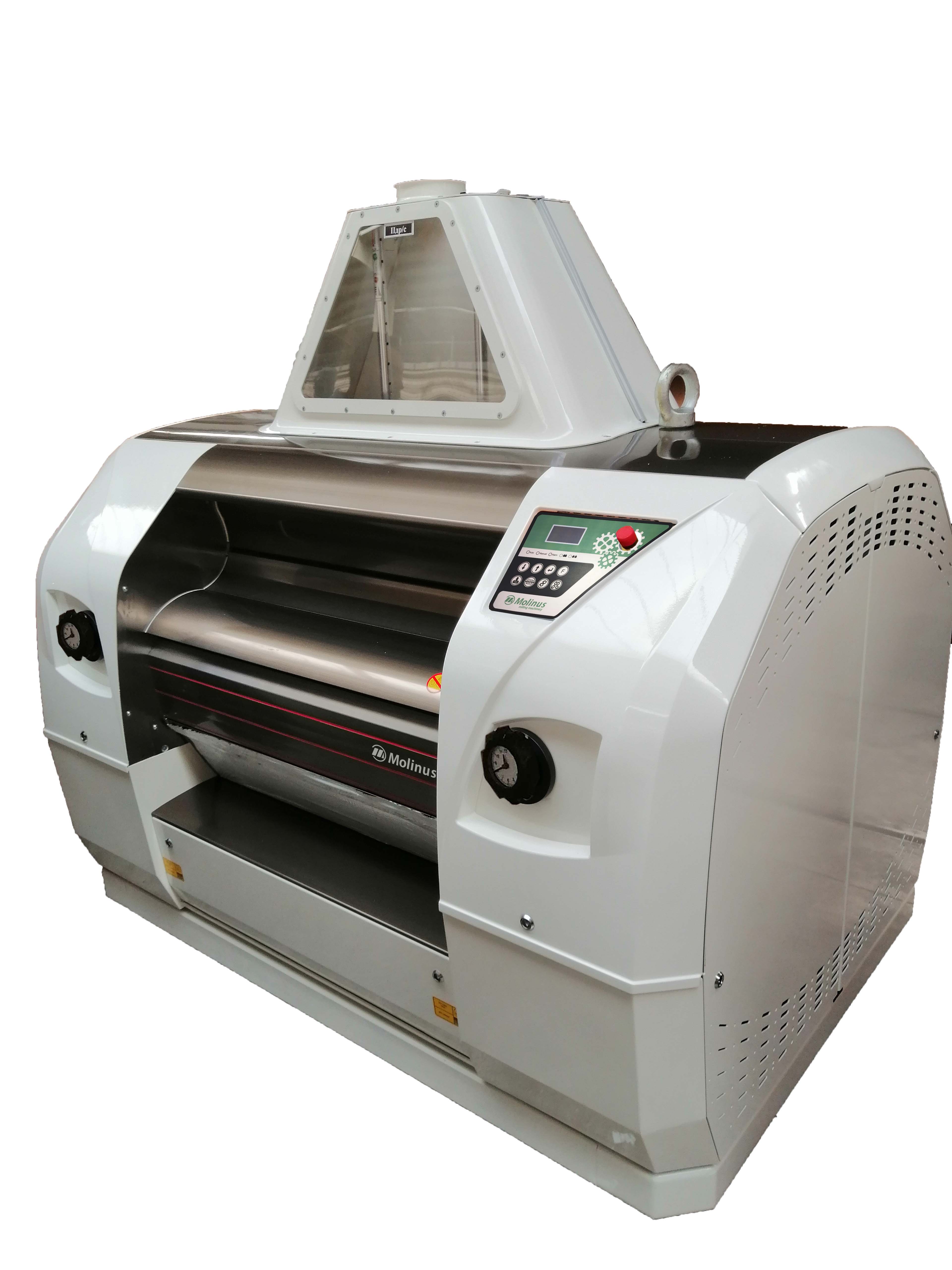

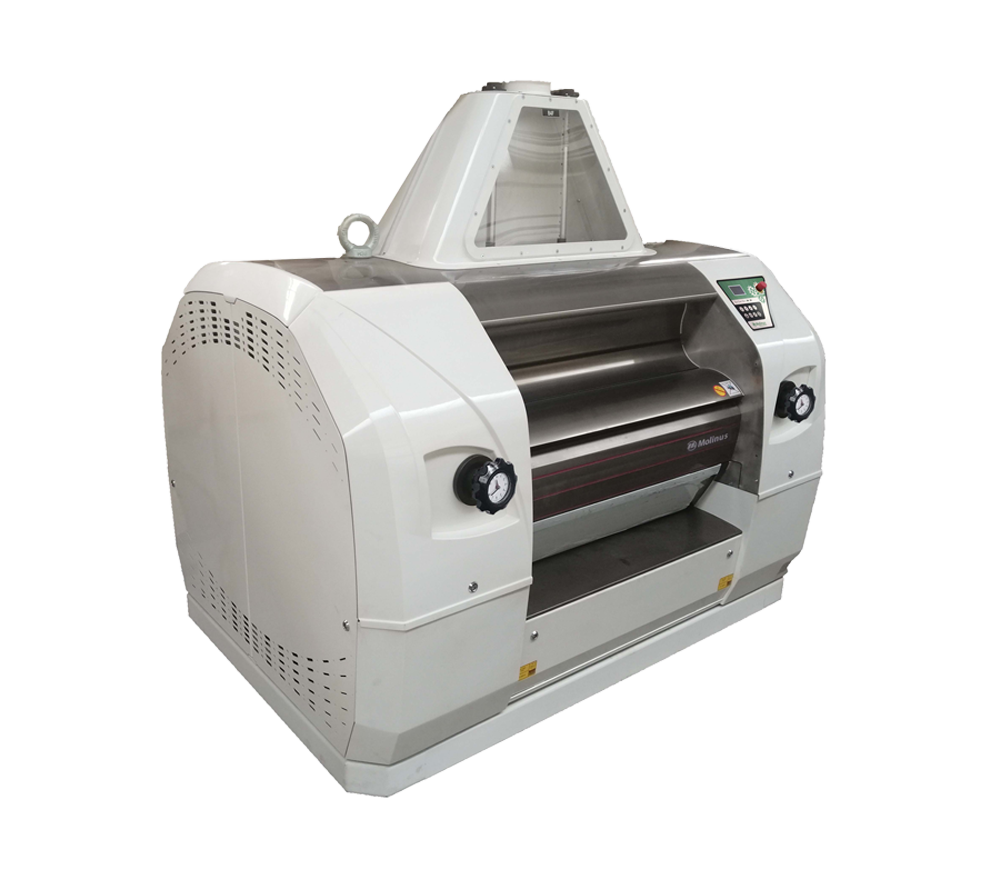

MCV Roller Mill

MCV Roller Mill

The main body is made of gray iron that absorbs the vibration and shocks.
Some parts of body is made of aluminum with lightweight, high durability and in conformity with sanitation and hygiene.
Feeding system with three rolls enables effective and smooth stock distribution on grinding rolls.
Feeding rolls group with linear bearings enables easy cleaning and maximum hygiene.
The roll pack system, that all forces and drivingpoints gathered in one axis, enables;
Quick roll change, in 20min
Single piece front cover that exposes the roll pack systemeasily and quickly.
Single group roll pack system
Effective Milling
Single piece front cover allows easy and quick access for maintenance and cleaning.
The infrared level probes enable a sensitive stock flow level control by monitoring of feed roll cycles.
Adjustable turbo system that creates negative pressure around the break rolls to suck dust around the break rolls
The complete body and parts designed with high sanitation and hygiene
User friendly and ergonomic driver cabinet allows easy access

Easy to use digital control panel

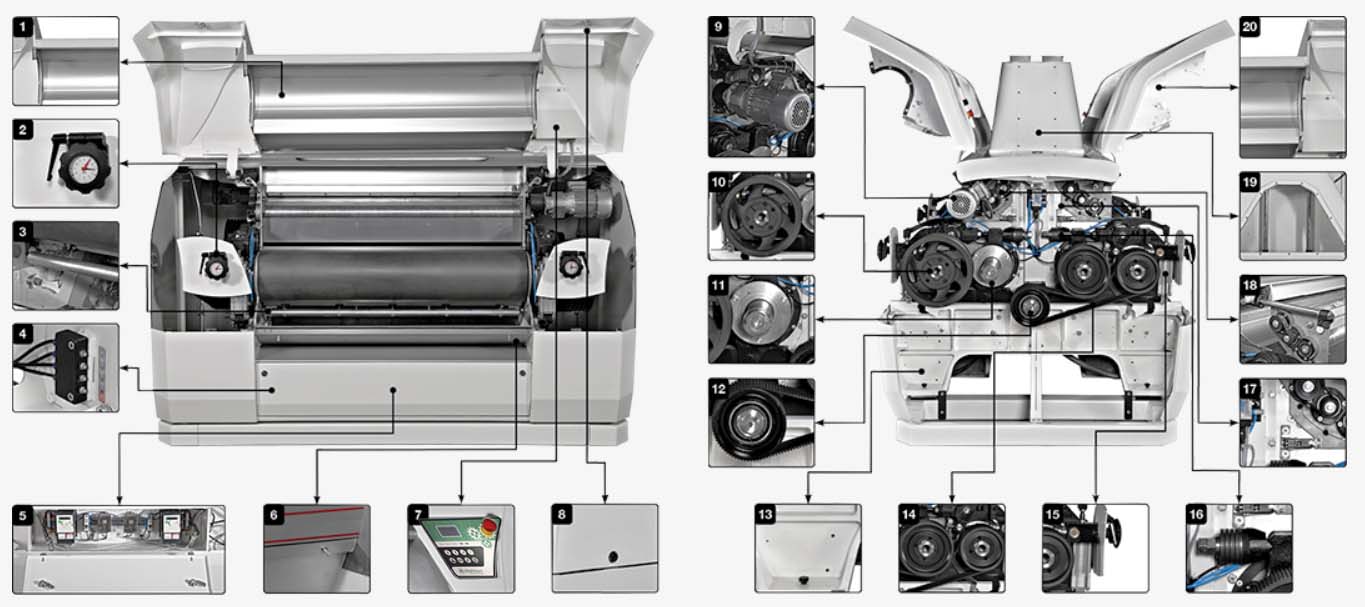

1. ALUMINUM FRONT COVERS
Aesthetic and smooth surface. Easy to clean.

2. GRAVITY INDICATOR
Easy and accurate roll gap & paralleship adjustment.

3. ROLL CLEANING BRUSHES AND KNIVES
Easily adjustable and high-degree roll cleaning.

4. CENTRAL GREASING SYSTEM
It is possible to grease roll housings without stopping the roller mill which decreases the idle time

5. ELECTRIC CABINET
Easy access to high quality electric and electronic components.

6. ISOLATED ALUMINUM PRODUCT CONTROL GATE
Light weight and easy to use, noise-free and heat-free product control gate.

7. CONTROL PANEL WITH HIGH ISOLATION
Easy access and control of all parameters to control the roller mill.Touch-screen panel is available on request.

8. SAFETY LOCKS
To prevent unauthorised access to dangerous places the gates designed with safety locks to secure working environment.

9. INVERTER CONTROLLED FEEDING ROLLS
The cycle of feeding rolls are regulated automatically by invertor controlled gear motor. Optional: Alongwith automatic inverter control, the feeder rolls cycle is regulated manually by digital setting device.

9. SIEVE BOX TIGHTENING MECHANISM
No stock leakages thanks to prefectly designed tightening mechanism.

10. TAPER BUSH PULLEYS
Easy montage and dismantling. Longer lifespan.

11. SPHERO-CAST ROLL HOUSINGS
Enduring and durable housings. Aluminum housing covers prevents high temperature due to their special structure.

12. AIR REGULATING VALVES
The amount of sucked air into machine is regulated accurately by these valves

13. IRON BODY
The main chassis is made of gray cast iron, increasing resistance and durability as well as absorbing the vibration and shocks.

14. SINGLE TIME BELT SYSTEM
Longer lifespan. Easy montage and dismantling. Standard belt sizes for all roller mill types and cycle.

15. PNEUMATIC CONTROL SYSTEM
Strong and durable components. Maintenance free. Easy montage and dismantling.

16. STRONG DISC SPRINGS
Optimum roll grinding pressure for a constant roll space. Useful for high milling quality.

17. ALUMINUM EXTRUSION FEEDING SYSTEM & ROLL COVERS
Feeding rolls housing and roll covers are made of high-resistant aluminum extrusion profiles with bolt-connection method.

18. FEEDING ROLL PACKS WITH LINEAR BALL BEARINGS
Easy cleaning for the back of feeding rolls which enables maximum hygiene at minimum time.

19. LEVEL PROBES
Feeding roll cycles are adjusted automatically by means of special level probes.

20. SINGLE-PIECE FRONT COVER
Easy access and fast cleaning and maintenance with the completely-openable front cover.

21. TURBO SYSTEM
Adjustable turbo system creates negative pressure around the rolls and provides dust absorption. In addition, dusty air is evacuated from the inlet hopper to the outlet hopper by using pneumatic system.

22. ROLLS PACKS FOR GRINDING ROLLS
Changing grinding rolls take only 20 minutes, thanks to completely dismantable grinding group which minimizes the idle & stop time of mill and creates time for an efficient production.
